50多年来，Hamilton一直是自动仪器和临床诊断仪器的可靠合作伙伴，我们的注射器的精确度和精密度使实验室的许多自动化过程成为可能。除了为Hamilton的设备提供注射器外，我们也为其他公司品牌的自动化仪器提供各种注射器。
Hamilton采用高质量的材料和熟练的制造工艺，是生产出的每个产品都具有高性能，高精度的独有特性。Hamilton注射器的精度在±1%标称值内，产品质量通过EN ISO 9001/EN 46001认证。

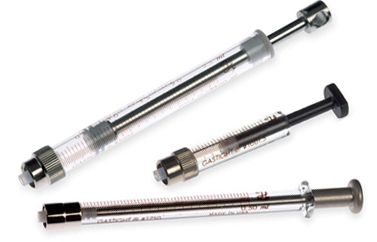

| Hamilton 仪器注射器 (Instrument Syrings) |
1. 仪器注射器的类型

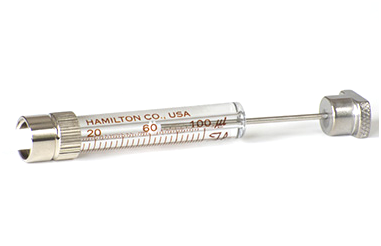

1.1 Half-Height
Half-height syringes have a 30 mm stroke length from full to empty.
1.2 Full-Height
Full-height syringes have a 60 mm stroke length from full to empty.

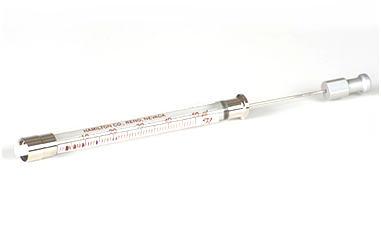

1.3 Longlife
Longlife syringes are available in full and half-height and utilize a 316 stainless steel plunger and UHMWPE plunger tips.
2. Syringe Terminations

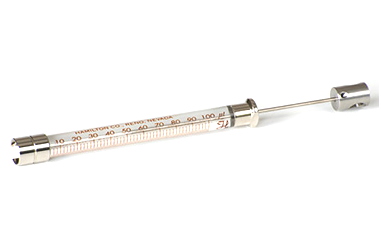

2.1 PTFE Luer Lock (TLL)
This termination has a PTFE, male Luer taper with nickel plated brass locking hub and is the standard termination for Hamilton syringe pumps.

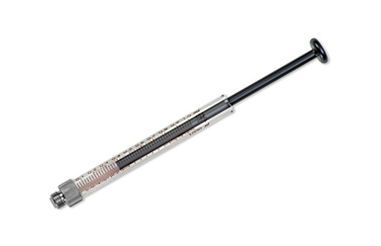

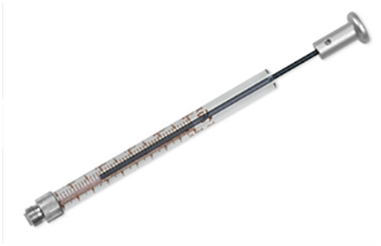

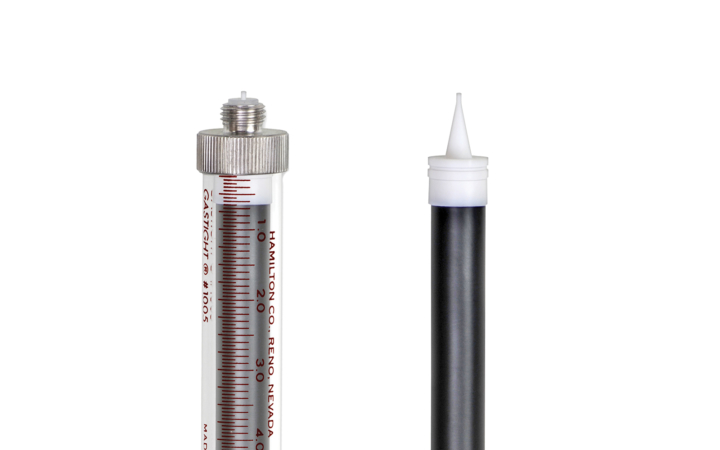

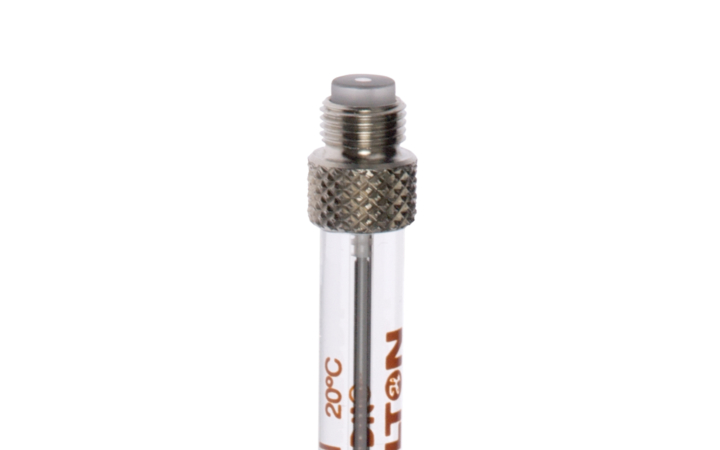

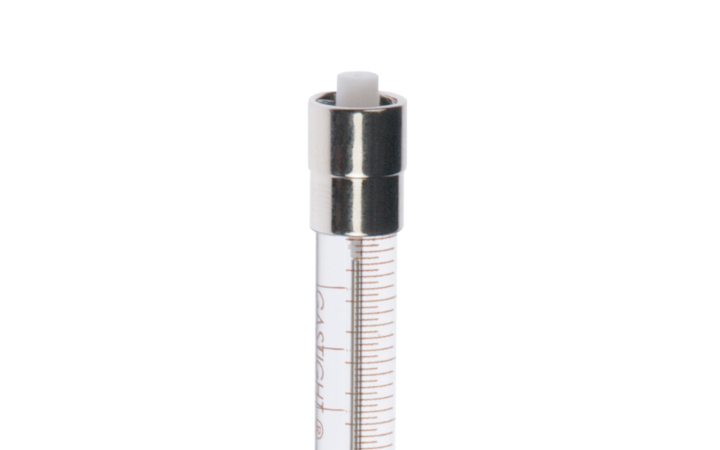

2.2 Bubble Free Prime (BFP)
This syringe terminations has 5/16 threads and features a conical plunger tip that extends through the termination to minimize dead volume. termination. The resulting syringe is quicker to prime and flush during washes or solvent changes.

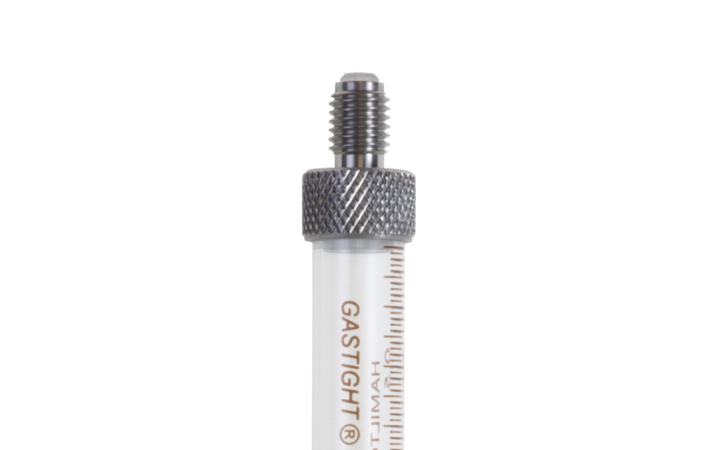

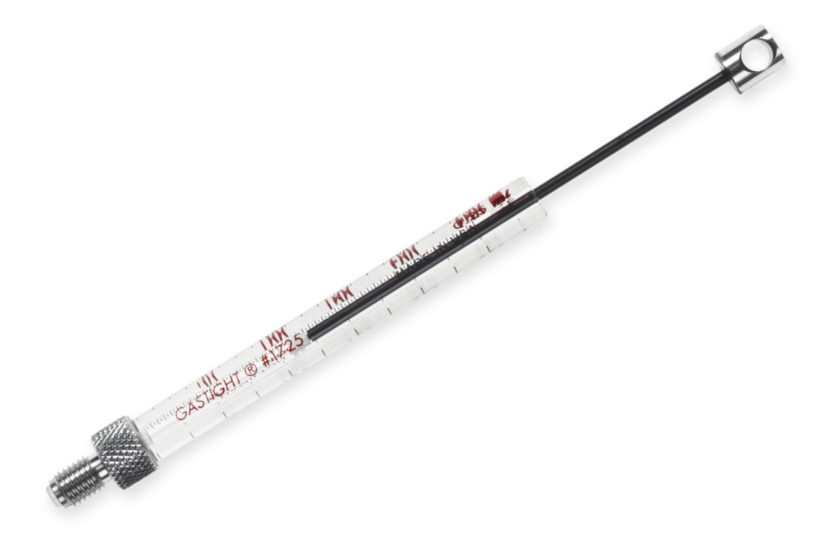

2.3 ChemSeal (C)
The ChemSeal termination features a ¼"-28 UNF male fitting.
2.4 AccuDil (AD)
These syringes have an axial fine thread M8 x 0.75.
3. Plunger Styles

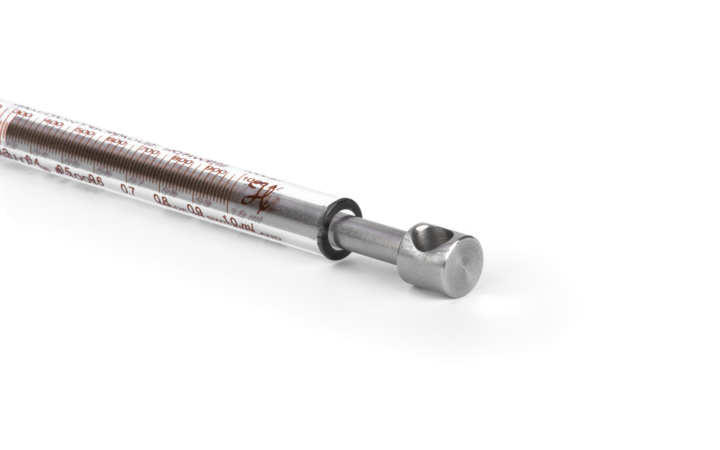

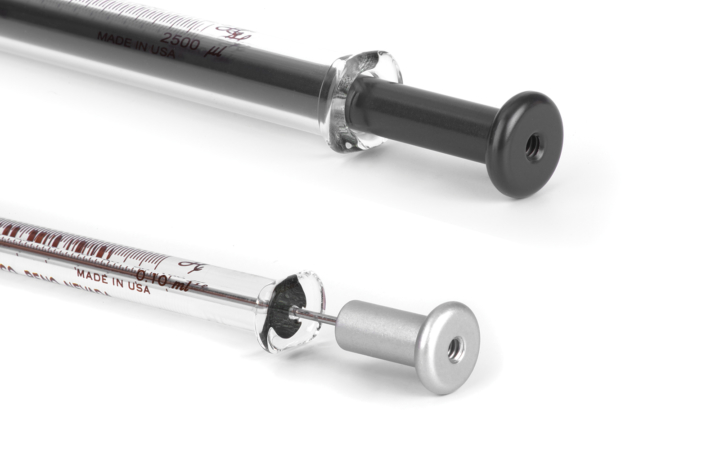

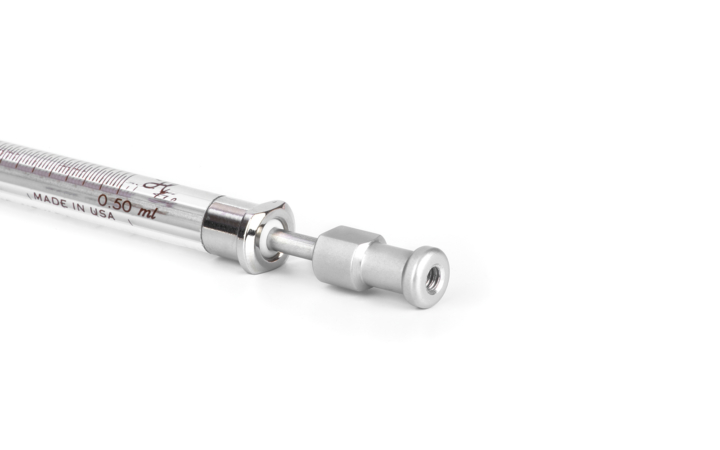

3.1 X-Style Plunger
This plunger design has a 6-32 threaded hole for attaching the plunger to a syringe drive. For 1 mL syringes and above the hole is machined into the plunger rod. For 500 µL syringes and smaller a plunger stop with a threaded hole is added to the plunger rod. The plunger stop protects the delicate plunger wire by stopping the pump at the zero line before damaging the tip.
3.2 XB-Style Plunger
3.3 XL-Style Plunger
|
货号(PN) |
容积 |
进样针类型 |
Termination |
Plunger Style |
|

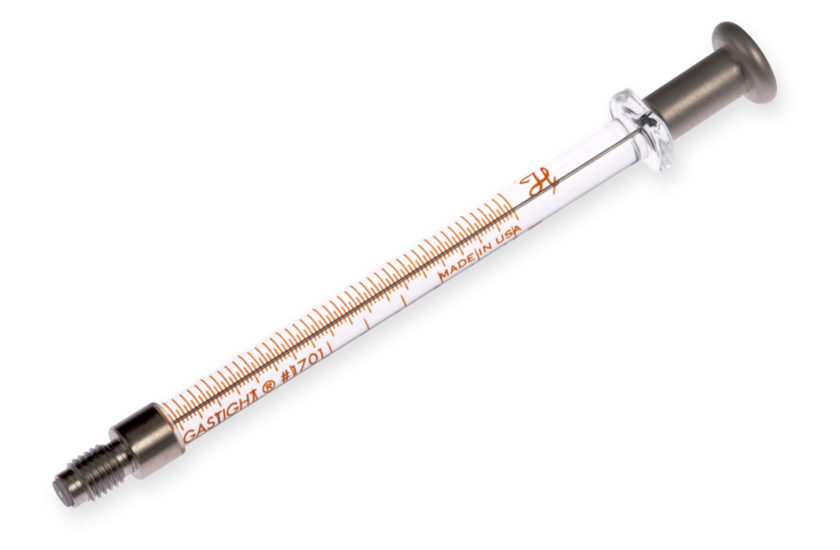

80062
|
10 µL |
Gastight |
ChemSeal (C, 1/4"-28) |
X-Style |
|
59000-05
|
10 µL |
Gastight, Bubble Free Prime |
Bubble Free Prime™ (BFP, 5/16"-28) |
X-Style |
|
5495-10
|
12.5 µL |
Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|

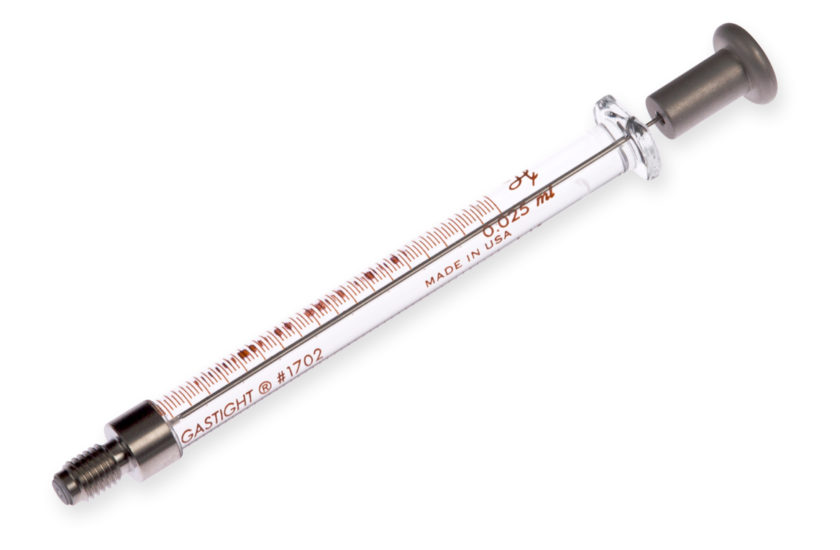

80262
|
25 µL |
Gastight |
ChemSeal (C, 1/4"-28) |
X-Style |
|
80222
|
25 µL |
Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|
62161-01 |
25 µL |
Gastight |
ChemSeal (C, 1/4"-28) |
Side Post Mounting (XL) |
|

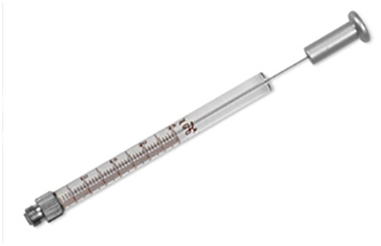

59000-10
|
25 µL |
Gastight, Bubble Free Prime |
Bubble Free Prime™ (BFP, 5/16"-28) |
X-Style |
|

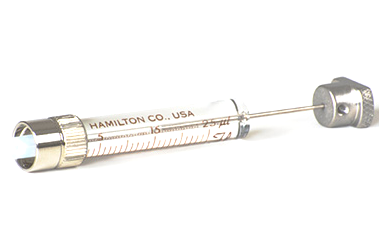

8250-15
|
25 µL |
Longlife Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|

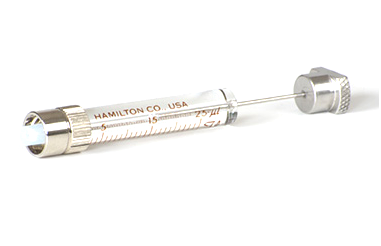

5495-15
|
25 µL |
Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|

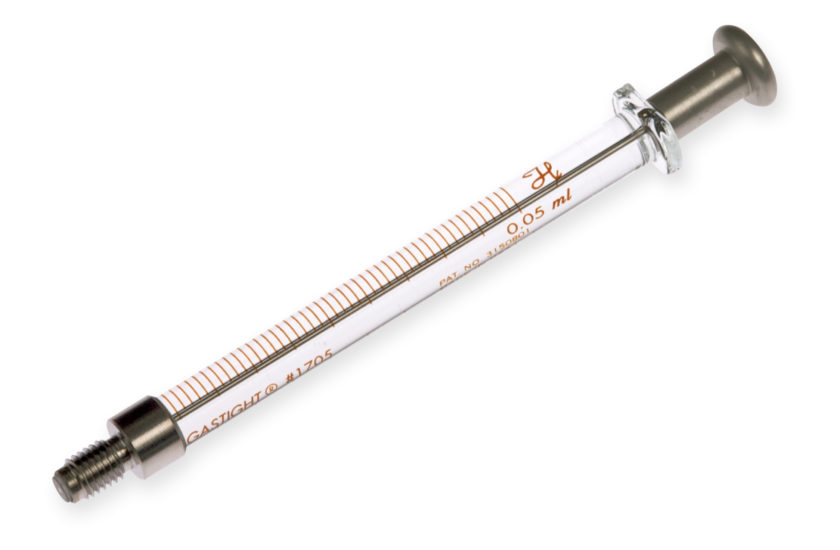

80962
|
50 µL |
Gastight |
ChemSeal (C, 1/4"-28) |
X-Style |
|

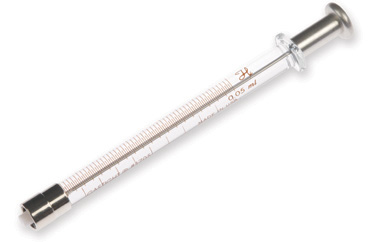

80922
|
50 µL |
Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|
59000-15
|
50 µL |
Gastight, Bubble Free Prime |
Bubble Free Prime™ (BFP, 5/16"-28) |
X-Style |
|
9882-15
|
50 µL |
Longlife Gastight |
PTFE Luer Lock (TLL) |
Side Post Mounting (XL) |
|
9880-15
|
50 µL |
Gastight |
PTFE Luer Lock (TLL) |
Side Post Mounting (XL) |
|
8300-15
|
50 µL |
Longlife Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|
8250-20
|
50 µL |
Longlife Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|

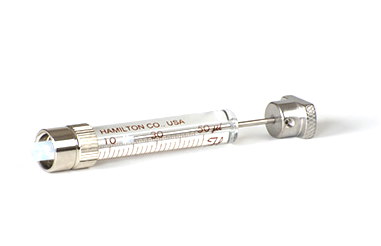

5495-20
|
50 µL |
Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|

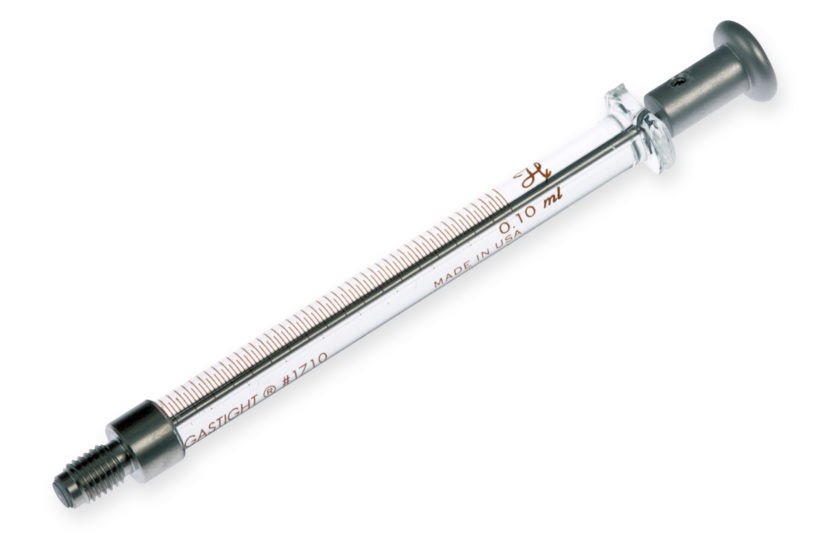

81062
|
100 µL |
Gastight |
ChemSeal (C, 1/4"-28) |
X-Style |
|
81022
|
100 µL |
Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|
59000-20
|
100 µL |
Gastight, Bubble Free Prime |
Bubble Free Prime™ (BFP, 5/16"-28) |
X-Style |
|

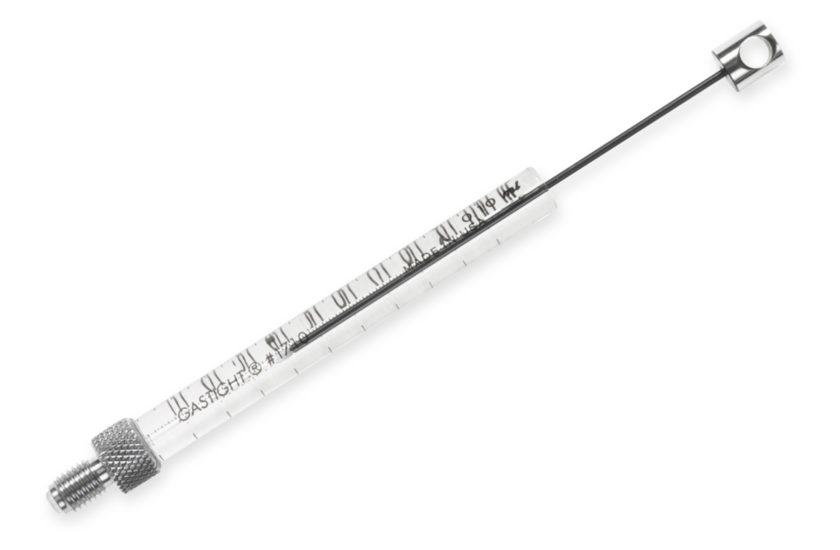

54658-01
|
100 µL |
Gastight |
ChemSeal (C, 1/4"-28) |
Side Post Mounting (XL) |
|
9882-20
|
100 µL |
Longlife Gastight |
PTFE Luer Lock (TLL) |
Side Post Mounting (XL) |
|
9880-20
|
100 µL |
Gastight |
PTFE Luer Lock (TLL) |
Side Post Mounting (XL) |
|

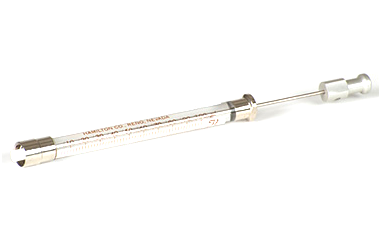

8300-20
|
100 µL |
Longlife Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|
8250-22
|
100 µL |
Longlife Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|
5495-22
|
100 µL |
Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|

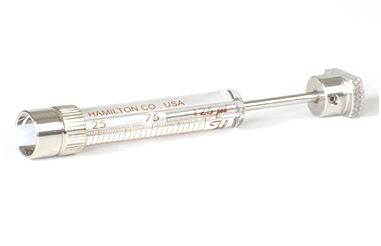

8250-25
|
125 µL |
Longlife Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|
5495-25
|
125 µL |
Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|

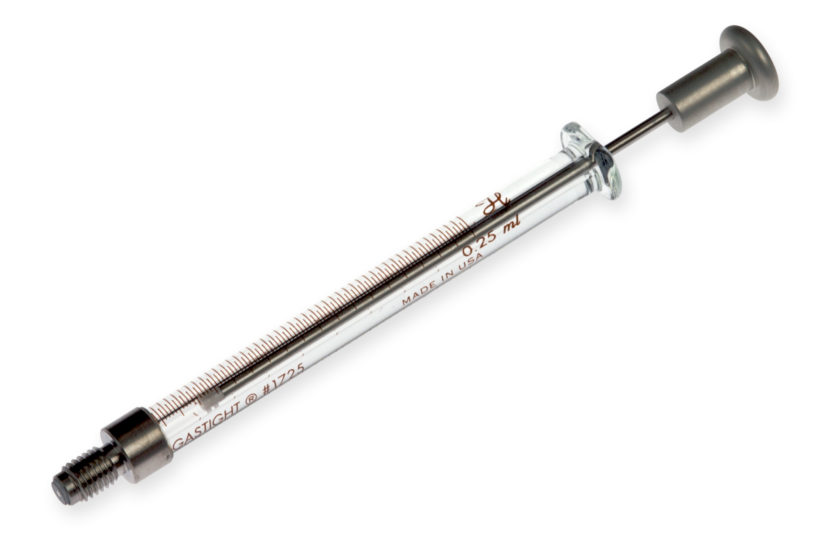

81162
|
250 µL |
Gastight |
ChemSeal (C, 1/4"-28) |
X-Style |
|

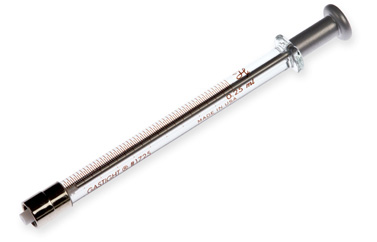

81122
|
250 µL |
Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|
59000-25
|
250 µL |
Gastight, Bubble Free Prime |
Bubble Free Prime™ (BFP, 5/16"-28) |
X-Style |
|
54659-01
|
250 µL |
Gastight |
ChemSeal (C, 1/4"-28) |
Side Post Mounting (XL) |
|
9882-25
|
250 µL |
Longlife Gastight |
PTFE Luer Lock (TLL) |
Side Post Mounting (XL) |
|
9880-25
|
250 µL |
Gastight |
PTFE Luer Lock (TLL) |
Side Post Mounting (XL) |
|

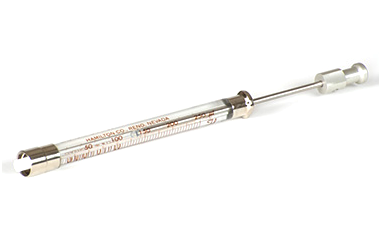

8300-25
|
250 µL |
Longlife Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|
8250-30
|
250 µL |
Longlife Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|

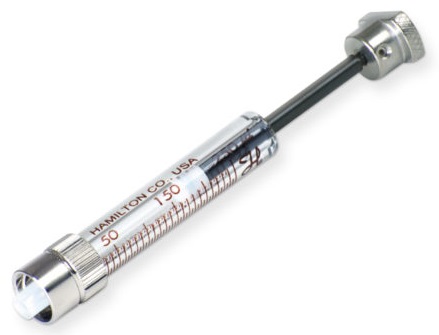

5495-30
|
250 µL |
Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|

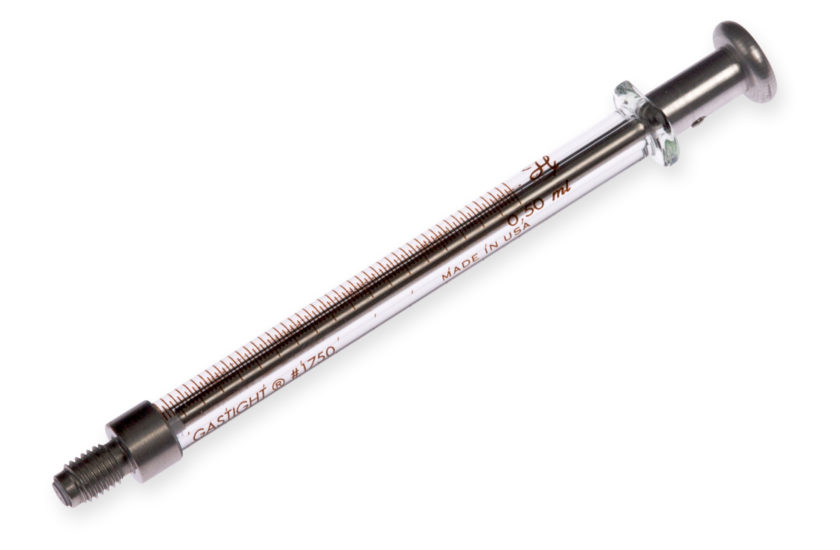

81262
|
500 µL |
Gastight |
ChemSeal (C, 1/4"-28) |
X-Style |
|
81222
|
500 µL |
Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|
59000-30
|
500 µL |
Gastight, Bubble Free Prime |
Bubble Free Prime™ (BFP, 5/16"-28) |
X-Style |
|

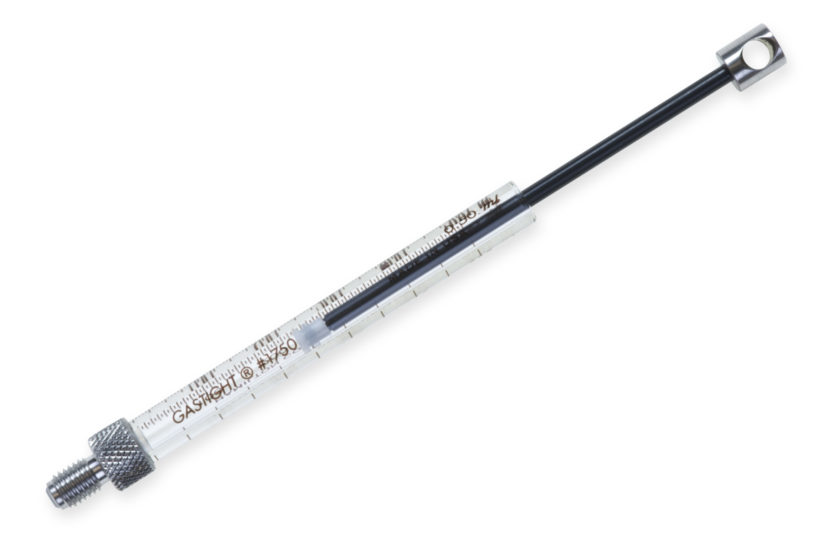

54660-01
|
500 µL |
Gastight |
ChemSeal (C, 1/4"-28) |
Side Post Mounting (XL) |
|
9882-30
|
500 µL |
Longlife Gastight |
PTFE Luer Lock (TLL) |
Side Post Mounting (XL) |
|
9880-30
|
500 µL |
Gastight |
PTFE Luer Lock (TLL) |
Side Post Mounting (XL) |
|
8300-30
|
500 µL |
Longlife Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|
8250-35
|
500 µL |
Longlife Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|
5495-35
|
500 µL |
Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|
81360
|
1 mL |
Gastight |
ChemSeal (C, 1/4"-28) |
X-Style |
|

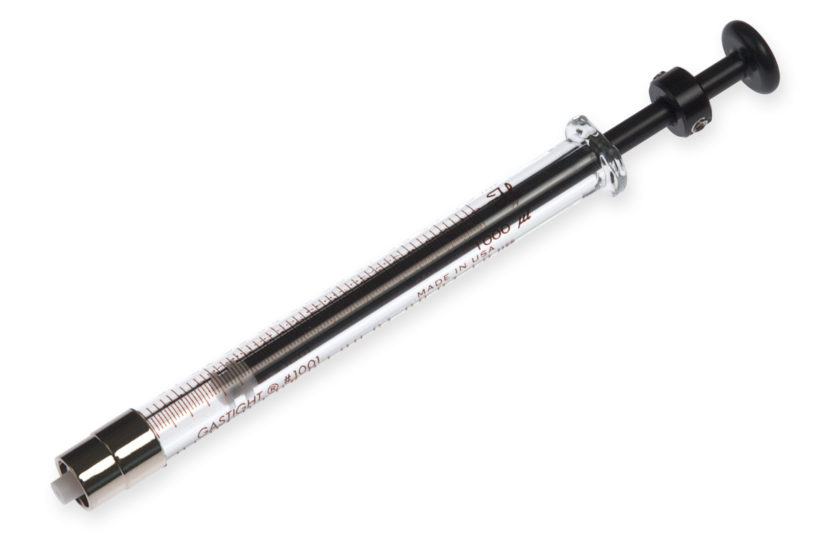

81323
|
1 mL |
Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|
59000-35
|
1 mL |
Gastight, Bubble Free Prime |
Bubble Free Prime™ (BFP, 5/16"-28) |
X-Style |
|

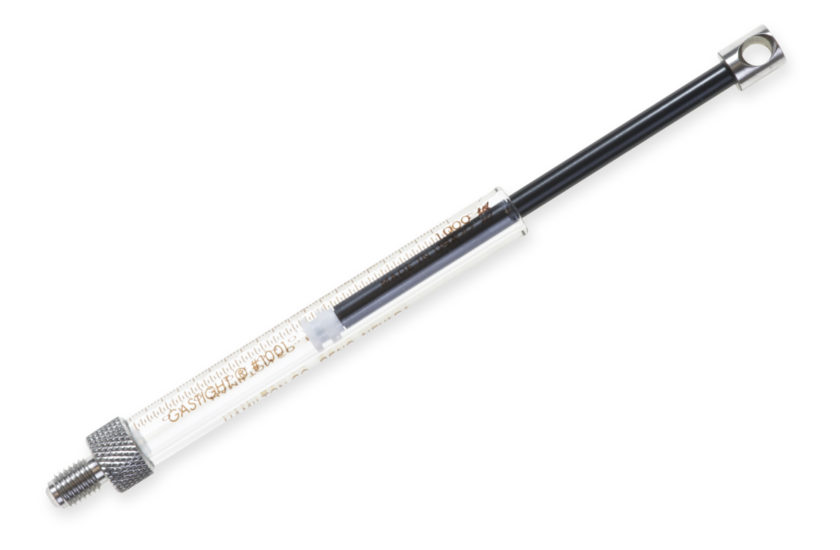

54661-01
|
1 mL |
Gastight |
ChemSeal (C, 1/4"-28) |
Side Post Mounting (XL) |
|

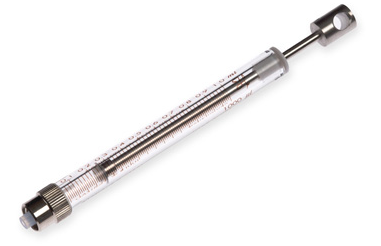

9882-35
|
1 mL |
Longlife Gastight |
PTFE Luer Lock (TLL) |
Side Post Mounting (XL) |
|
9880-35
|
1 mL |
Gastight |
PTFE Luer Lock (TLL) |
Side Post Mounting (XL) |
|
8300-35
|
1 mL |
Longlife Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|
8250-37
|
1 mL |
Longlife Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|
5495-38
|
1 mL |
Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|
8250-40
|
1.25 mL |
Longlife Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|
5495-40
|
1.25 mL |
Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|
81460
|
2.5 mL |
Gastight |
ChemSeal (C, 1/4"-28) |
X-Style |
|
81420
|
2.5 mL |
Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|

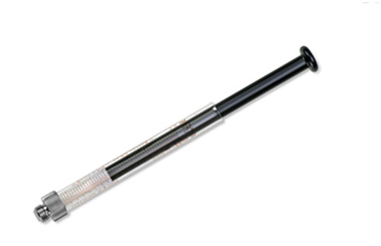

59000-40
|
2.5 mL |
Gastight, Bubble Free Prime |
Bubble Free Prime™ (BFP, 5/16"-28) |
X-Style |
|
54662-01
|
2.5 mL |
Gastight |
ChemSeal (C, 1/4"-28) |
Side Post Mounting (XL) |
|
9882-40
|
2.5 mL |
Longlife Gastight |
PTFE Luer Lock (TLL) |
Side Post Mounting (XL) |
|
9880-40
|
2.5 mL |
Gastight |
PTFE Luer Lock (TLL) |
Side Post Mounting (XL) |
|
8300-40
|
2.5 mL |
Longlife Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|
8250-45
|
2.5 mL |
Longlife Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|
5495-45
|
2.5 mL |
Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|
81560
|
5 mL |
Gastight |
ChemSeal (C, 1/4"-28) |
X-Style |
|
81520
|
5 mL |
Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|

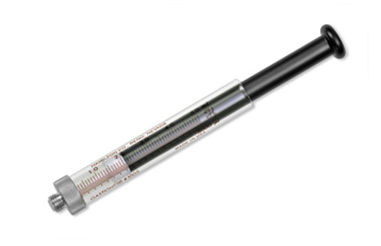

59000-45
|
5 mL |
Gastight, Bubble Free Prime |
Bubble Free Prime™ (BFP, 5/16"-28) |
X-Style |
|
9882-45
|
5 mL |
Longlife Gastight |
PTFE Luer Lock (TLL) |
Side Post Mounting (XL) |
|
9880-45
|
5 mL |
Gastight |
PTFE Luer Lock (TLL) |
Side Post Mounting (XL) |
|

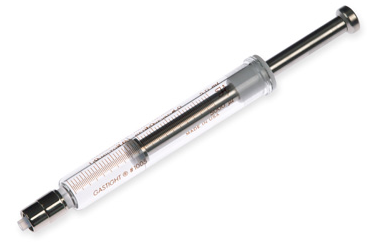

8300-45
|
5 mL |
Longlife Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|

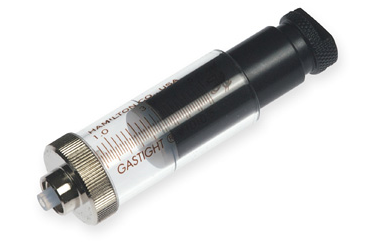

8250-50
|
5 mL |
Longlife Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|

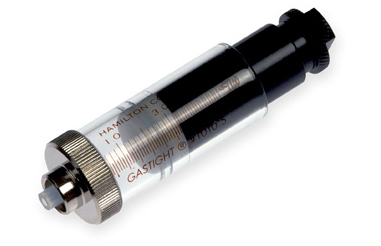

5495-50
|
5 mL |
Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|
81660
|
10 mL |
Gastight |
ChemSeal (C, 1/4"-28) |
X-Style |
|
81620
|
10 mL |
Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|

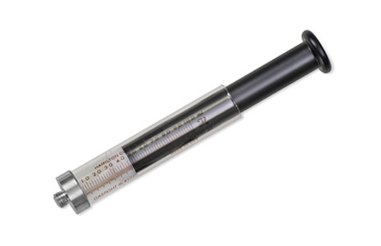

59000-50
|
10 mL |
Gastight, Bubble Free Prime |
Bubble Free Prime™ (BFP, 5/16"-28) |
X-Style |
|

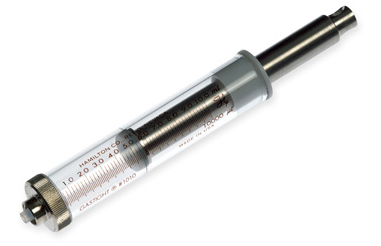

9882-50
|
10 mL |
Longlife Gastight |
PTFE Luer Lock (TLL) |
Side Post Mounting (XL) |
|

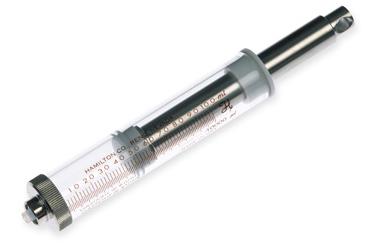

9880-50
|
10 mL |
Gastight |
PTFE Luer Lock (TLL) |
Side Post Mounting (XL) |
|
8300-50
|
10 mL |
Longlife Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|

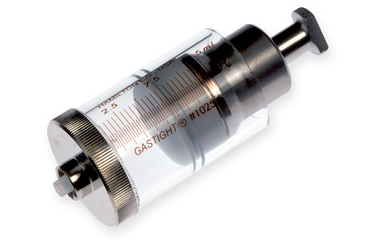

5495-55
|
12.5 mL |
Gastight Half-Height |
PTFE Luer Lock (TLL) |
X-Style |
|

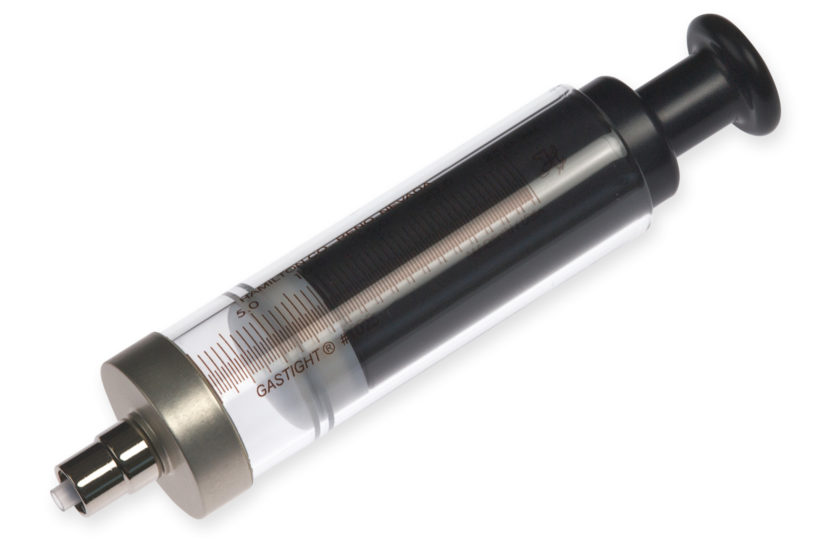

82521
|
25 mL |
Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|
59000-55
|
25 mL |
Gastight, Bubble Free Prime |
Bubble Free Prime™ (BFP, 5/16"-28) |
X-Style |
|
9880-55
|
25 mL |
Gastight |
PTFE Luer Lock (TLL) |
Side Post Mounting (XL) |
|
85021
|
50 mL |
Gastight |
PTFE Luer Lock (TLL) |
X-Style |
|

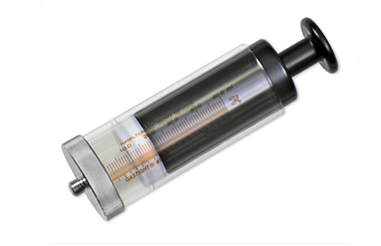

59000-60
|
50 mL |
Gastight, Bubble Free Prime |
Bubble Free Prime™ (BFP, 5/16"-28) |
X-Style |
