Neuros syringe Maximum Control, Minimum Damage. Neuros syringe technology provides unprecedented functionality for controlled animal injections. An industry first, the Neuros accurately dispenses 50 nL to 100 μL of liquid through an ultrafine needle protected by a custom-designed sleeve. Developed specifically for the neurosciences, the Neuros minimizes injection site damage by increasing needle rigidity and delivering a microvolume of liquid to an exact location.

商品信息

Brain Injections

Brain injections require precision targeting. In a process where minute damage can be fatal to your results, size matters. Get the industry’s smallest dispense volume and finest needle with Neuro syringe technology from Hamilton Company

Targeted sample delivery

The Neuros accurately dispenses 50 nL to 100 μL of sample through a reinforced, ultrathin gauge needle protected by a custom-designed sleeve. The fine gauge needle creates a smaller injection site which minimizes tissue damage and injection variability. Neuros syringes feature a blunt point (point style 3) or beveled 12° point (point style 4) so sample is delivered directly to the site. These syringes are crafted to have very little to no dead volume which preserves the maximum amount of buffer and solution.

Flexible options for a variety of uses

Neuros technology is offered on several models from the 700 Microliter, 1700 Gastight, and 7000 Modified Microliter series. Each syringe offers two needle sleeve options. The sleeve with a blind stop is perfect for cannulated applications and ensures precise administration with an adjustable penetration depth. The version without a blind stop works best with stereotaxic holders. Both types provide an adjustable needle exposure of 0–20 mm.

Also, Neuros syringes are compatible with most infusion pumps and stereotaxic holders, allowing for an easy integration into existing processes.

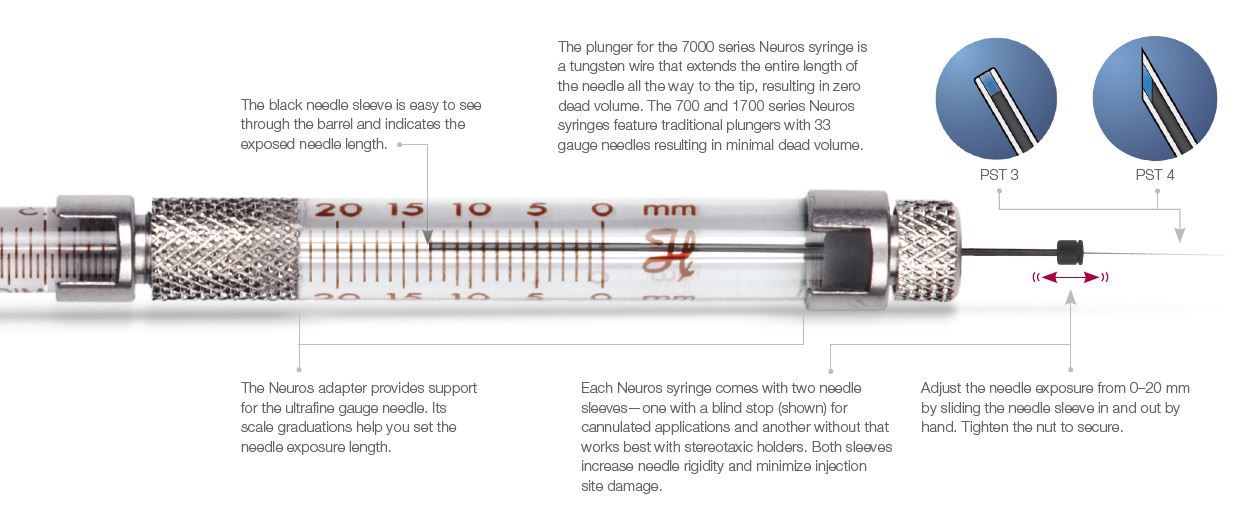

Product Close-Up

订货信息：

货号

产品说明

产品图片

65457-01

0.5 µL, Neuros Model 7000.5 KH, point style 3, SYR

Volume	0.5 µL
Syringe Type	Microliter
Syringe Series	7000
Termination	Neuros
Needle	KH
Gauge	32 gauge
Point Style	3
Needle Length	0 - 20 mm adjustable
Needle Inner Diameter	0.004 inches (0.10 mm)
Needle Outer Diameter	0.009 inches (0.229 mm)
Std. Needle Dead Volume	0 µL
Fluid Path	SST, tungsten
Autoclavable	Yes
Gas Sterilizable	Yes
Pressure	6000 psig (413.7 bar)
Maximum Temperature	115°C / 239°F
Minimum Temperature	10°C / 50°F
Barrel Inner Diameter	0.004 inches (0.103 mm)
Barrel Outer Diameter	0.308 inches (7.82 mm)

65457-02

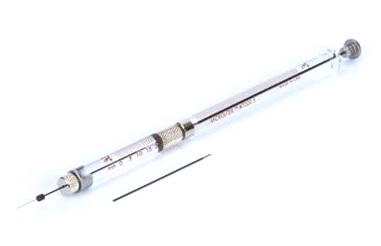

0.5 µL, Neuros Model 7000.5 KH, point style 4, SYR

Volume	0.5 µL
Syringe Type	Microliter
Syringe Series	7000
Termination	Neuros
Needle	KH
Gauge	32 gauge
Point Style	4
Needle Length	0 - 20 mm adjustable
Needle Inner Diameter	0.004 inches (0.10 mm)
Needle Outer Diameter	0.009 inches (0.229 mm)
Std. Needle Dead Volume	0 µL
Fluid Path	SST, tungsten
Autoclavable	Yes
Gas Sterilizable	Yes
Pressure	6000 psig (413.7 bar)
Maximum Temperature	115°C / 239°F
Minimum Temperature	10°C / 50°F
Barrel Inner Diameter	0.004 inches (0.103 mm)
Barrel Outer Diameter	0.308 inches (7.82 mm)

65458-01

1.0 µL, Neuros Model 7001 KH, point style 3, SYR

Volume	1 µL
Syringe Type	Microliter
Syringe Series	7000
Termination	Neuros
Needle	KH
Gauge	32 gauge
Point Style	3
Needle Length	0 - 20 mm adjustable
Needle Inner Diameter	0.006 inches (0.146 mm)
Needle Outer Diameter	0.009 inches (0.229 mm)
Std. Needle Dead Volume	0 µL
Fluid Path	SST, tungsten
Autoclavable	Yes
Gas Sterilizable	Yes
Pressure	6000 psig (413.7 bar)
Maximum Temperature	115°C / 239°F
Minimum Temperature	10°C / 50°F
Barrel Inner Diameter	0.006 inches (0.146 mm)
Barrel Outer Diameter	0.308 inches (7.82 mm)

65458-02

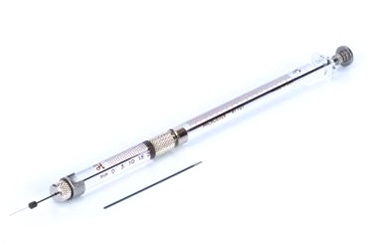

1.0 µL, Neuros Model 7001 KH, point style 4, SYR

Volume	1 µL
Syringe Type	Microliter
Syringe Series	7000
Termination	Knurled Hub (KH)
Needle	KH
Gauge	32 gauge
Point Style	4
Needle Length	0 - 20 mm adjustable
Needle Inner Diameter	0.006 inches (0.146 mm)
Needle Outer Diameter	0.009 inches (0.229 mm)
Std Needle Dead Volume	0 µL
Fluid Path	SST, tungsten
Autoclavable	Yes
Gas Sterilizable	Yes
Pressure	6000 psig (413.7 bar)
Maximum Temperature	239°F (115°C)
Minimum Temperature	50°F (10°C)
Barrel Inner Diameter	0.006 inches (0.146 mm)
Barrel Outer Diameter	0.308 inches (7.82 mm)

65459-01

2.0 µL, Neuros Model 7002 KH, point style 3, SYR

Volume	2 µL
Syringe Type	Microliter
Syringe Series	7000
Termination	Neuros
Needle	KH
Gauge	30 gauge
Point Style	3
Needle Length	0 - 20 mm adjustable
Needle Inner Diameter	0.008 inches (0.20 mm)
Needle Outer Diameter	0.012 inches (0.312 mm)
Std. Needle Dead Volume	0 µL
Fluid Path	SST, tungsten
Autoclavable	Yes
Gas Sterilizable	Yes
Pressure	6000 psig (413.7 bar)
Maximum Temperature	115°C / 239°F
Minimum Temperature	10°C / 50°F
Barrel Inner Diameter	0.008 inches (0.206 mm)
Barrel Outer Diameter	0.308 inches (7.82 mm)

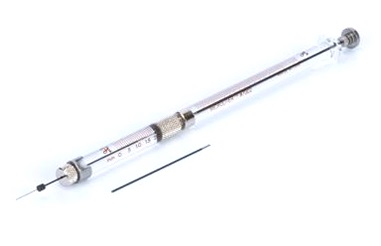

65459-02

2.0 µL, Neuros Model 7002 KH, point style 4, SYR

Volume	2 µL
Syringe Type	Microliter
Syringe Series	7000
Termination	Knurled Hub (KH)
Needle	KH
Gauge	30 gauge
Point Style	4
Needle Length	0 - 20 mm adjustable
Needle Inner Diameter	0.008 inches (0.20 mm)
Needle Outer Diameter	0.012 inches (0.312 mm)
Std Needle Dead Volume	0 µL
Fluid Path	SST, tungsten
Autoclavable	Yes
Gas Sterilizable	Yes
Pressure	6000 psig (413.7 bar)
Maximum Temperature	239°F (115°C)
Minimum Temperature	50°F (10°C)
Barrel Inner Diameter	0.008 inches (0.206 mm)
Barrel Outer Diameter	0.308 inches (7.82 mm)

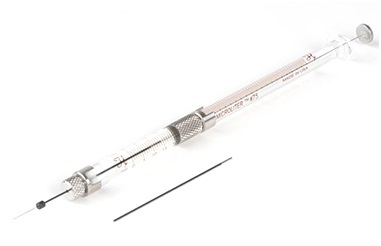

65460-02

5 µL, Neuros Model 75 RN, point style 3, SYR

Volume	5 µL
Syringe Type	Microliter
Syringe Series	700
Termination	Neuros
Needle	Small RN
Gauge	33 gauge
Point Style	3
Needle Length	0 - 20 mm adjustable
Needle Inner Diameter	0.004 inches (0.108 mm)
Needle Outer Diameter	0.008 inches (0.210 mm)
Std. Needle Dead Volume	0.79 µL
Fluid Path	SST, borosilicate glass
Autoclavable	Yes
Gas Sterilizable	Yes
Pressure	2000 psig (137.9 bar)
Maximum Temperature	115°C / 239°F
Minimum Temperature	10°C / 50°F
Barrel Inner Diameter	0.014 inches (0.343 mm)
Barrel Outer Diameter	0.260 inches (6.60 mm)

65460-03

5 µL, Neuros Model 75 RN, point style 4, SYR

Volume	5 µL
Syringe Type	Microliter
Syringe Series	700
Termination	Neuros
Needle	Small RN
Gauge	33 gauge
Point Style	4
Needle Length	0 - 20 mm adjustable
Needle Inner Diameter	0.004 inches (0.108 mm)
Needle Outer Diameter	0.008 inches (0.210 mm)
Std Needle Dead Volume	0.79 µL
Fluid Path	SST, borosilicate glass
Autoclavable	Yes
Gas Sterilizable	Yes
Pressure	2000 psig (137.9 bar)
Maximum Temperature	239°F (115°C)
Minimum Temperature	50°F (10°C)
Barrel Inner Diameter	0.014 inches (0.343 mm)
Barrel Outer Diameter	0.260 inches (6.60 mm)

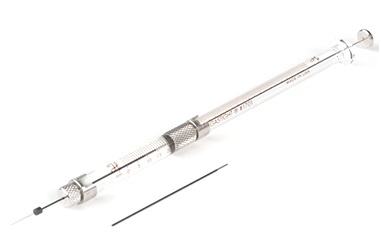

65460-05

10 µL, Neuros Model 1701 RN, point style 3, SYR

Volume 10 µL

Syringe Type Gastight

Syringe Series 1700

Termination Neuros

Needle Small RN

Gauge 33 gauge

Point Style 3

Needle Length 0 - 20 mm adjustable

Needle Inner Diameter 0.004 inches (0.108 mm)

Needle Outer Diameter 0.008 inches (0.210 mm)

Std. Needle Dead Volume 0.79 µL

Fluid Path SST, borosilicate glass, PTFE

Autoclavable Yes

Gas Sterilizable Yes

Pressure 1000 psig (68.9 bar)

Maximum Temperature 115°C / 239°F

Minimum Temperature 10°C / 50°F

Barrel Inner Diameter 0.018 inches (0.460 mm)

Barrel Outer Diameter 0.260 inches (6.60 mm)

65460-06

10 µL, Neuros Model 1701 RN, point style 4, SYR

Volume 10 µL

Syringe Type Gastight

Syringe Series 1700

Termination Neuros

Needle Small RN

Gauge 33 gauge

Point Style 4

Needle Length 0 - 20 mm adjustable

Needle Inner Diameter 0.004 inches (0.108 mm)

Needle Outer Diameter 0.008 inches (0.210 mm)

Std Needle Dead Volume 0.79 µL

Fluid Path SST, borosilicate glass, PTFE

Autoclavable Yes

Gas Sterilizable Yes

Pressure 1000 psig (68.9 bar)

Maximum Temperature 239°F (115°C)

Minimum Temperature 50°F (10°C)

Barrel Inner Diameter 0.018 inches (0.460 mm)

Barrel Outer Diameter 0.260 inches (6.60 mm)

65460-10

25 µL, Neuros Model 1702 RN, point style 3, SYR

Volume 25 µL

Syringe Type Gastight

Syringe Series 1700

Termination Neuros

Needle Small RN

Gauge 33 gauge

Point Style 3

Needle Length 0 - 20 mm adjustable

Needle Inner Diameter 0.004 inches (0.108 mm)

Needle Outer Diameter 0.008 inches (0.210 mm)

Std. Needle Dead Volume 0.79 µL

Fluid Path SST, borosilicate glass, PTFE

Autoclavable Yes

Gas Sterilizable Yes

Pressure 1000 psig (68.9 bar)

Maximum Temperature 115°C / 239°F

Minimum Temperature 10°C / 50°F

Barrel Inner Diameter 0.029 inches (0.729 mm)

Barrel Outer Diameter 0.305 inches (7.75 mm)

65460-11

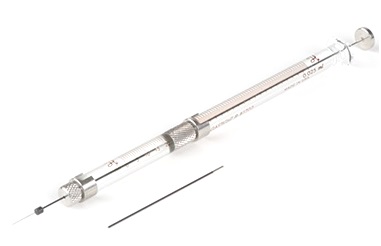

25 µL, Neuros Model 1702 RN, point style 4, SYR

Volume	25 µL
Syringe Type	Gastight
Syringe Series	1700
Termination	Neuros
Needle	Small RN
Gauge	33 gauge
Point Style	4
Needle Length	0 - 20 mm adjustable
Needle Inner Diameter	0.004 inches (0.108 mm)
Needle Outer Diameter	0.008 inches (0.210 mm)
Std Needle Dead Volume	0.79 µL
Fluid Path	SST, borosilicate glass, PTFE
Autoclavable	Yes
Gas Sterilizable	Yes
Pressure	1000 psig (68.9 bar)
Maximum Temperature	239°F (115°C)
Minimum Temperature	50°F (10°C)
Barrel Inner Diameter	0.029 inches (0.729 mm)
Barrel Outer Diameter	0.305 inches (7.75 mm)

65460-15

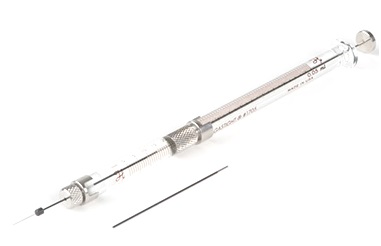

50 µL, Neuros Model 1705 RN, point style 3, SYR

Volume 50 µL

Syringe Type Gastight

Syringe Series 1700

Termination Neuros

Needle Small RN

Gauge 33 gauge

Point Style 3

Needle Length 0 - 20 mm adjustable

Needle Inner Diameter 0.004 inches (0.108 mm)

Needle Outer Diameter 0.008 inches (0.210 mm)

Std. Needle Dead Volume 0.79 µL

Fluid Path SST, borosilicate glass, PTFE

Autoclavable Yes

Gas Sterilizable Yes

Pressure 1000 psig (68.9 bar)

Maximum Temperature 115°C / 239°F

Minimum Temperature 10°C / 50°F

Barrel Inner Diameter 0.041 inches (1.03 mm)

Barrel Outer Diameter 0.305 inches (7.75 mm)

65460-16

50 µL, Neuros Model 1705 RN, point style 4, SYR

Volume 50 µL

Syringe Type Gastight

Syringe Series 1700

Termination Neuros

Needle Small RN

Gauge 33 gauge

Point Style 4

Needle Length 0 - 20 mm adjustable

Needle Inner Diameter 0.004 inches (0.108 mm)

Needle Outer Diameter 0.008 inches (0.210 mm)

Std Needle Dead Volume 0.79 µL

Fluid Path SST, borosilicate glass, PTFE

Autoclavable Yes

Gas Sterilizable Yes

Pressure 1000 psig (68.9 bar)

Maximum Temperature 239°F (115°C)

Minimum Temperature 50°F (10°C)

Barrel Inner Diameter 0.041 inches (1.03 mm)

Barrel Outer Diameter 0.305 inches (7.75 mm)

65460-20

100 µL, Neuros Model 1710 RN, point style 3, SYR

Volume 100 µL

Syringe Type Gastight

Syringe Series 1700

Termination Neuros

Needle Small RN

Gauge 33 gauge

Point Style 3

Needle Length 0 - 20 mm adjustable

Needle Inner Diameter 0.004 inches (0.108 mm)

Needle Outer Diameter 0.008 inches (0.210 mm)

Std. Needle Dead Volume 0.79 µL

Fluid Path SST, borosilicate glass, PTFE

Autoclavable Yes

Gas Sterilizable Yes

Pressure 1000 psig (68.9 bar)

Maximum Temperature 115°C / 239°F

Minimum Temperature 10°C / 50°F

Barrel Inner Diameter 0.057 inches (1.46 mm)

Barrel Outer Diameter 0.305 inches (7.75 mm)

65460-21

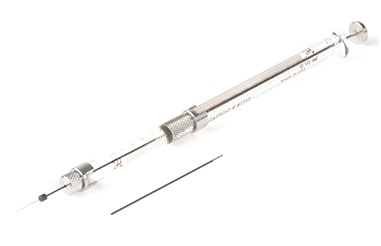

100 µL, Neuros Model 1710 RN, point style 4, SYR

Volume 100 µL

Syringe Type Gastight

Syringe Series 1700

Termination Neuros

Needle Small RN

Gauge 33 gauge

Point Style 4

Needle Length 0 - 20 mm adjustable

Needle Inner Diameter 0.004 inches (0.108 mm)

Needle Outer Diameter 0.008 inches (0.210 mm)

Std Needle Dead Volume 0.79 µL

Fluid Path SST, borosilicate glass, PTFE

Autoclavable Yes

Gas Sterilizable Yes

Pressure 1000 psig (68.9 bar)

Maximum Temperature 239°F (115°C)

Minimum Temperature 50°F (10°C)

Barrel Inner Diameter 0.0057 inches (0.145 mm)

Barrel Outer Diameter 0.305 inches (7.75 mm)

65460-01

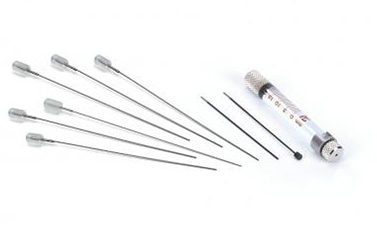

Neuros Adapter Kit for 100 µL RN SYR and smaller, point style 3

Termination Neuros

Needle Small RN

Gauge 33 gauge

Point Style 3

Needle Inner Diameter 0.004 inches (0.108 mm)

Needle Outer Diameter 0.008 inches (0.210 mm)

Std. Needle Dead Volume 0.79 µL

Fluid Path SST, borosilicate glass

Autoclavable Yes

Gas Sterilizable Yes

65460-04

Neuros Adapter Kit for 100 µL RN SYR and smaller, point style 4

Termination Neuros

Needle Small RN

Gauge 33 gauge

Point Style 4

Needle Inner Diameter 0.004 inches (0.108 mm)

Needle Outer Diameter 0.008 inches (0.210 mm)

Std Needle Dead Volume 0.79 µL

Fluid Path SST, borosilicate glass

Autoclavable Yes

Gas Sterilizable Yes

65461-01

Neuros Replacement NDL, 33 gauge, Small Hub RN NDL, 3.03 in, point style 3, 6/PK

Hub Small RN

Gauge 33 gauge

Length 3.03 inch

Point Style 3

Autoclavable Yes

Sales Quantity 6 needles per pack

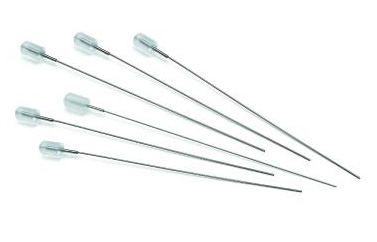

65461-02

Neuros Replacement NDL, 33 gauge, Small Hub RN NDL, 3.03 in, point style 4, 6/PK

Hub
Small RN

Gauge 33 gauge

Point Style 4

Length 3.03 inch

Autoclavable Yes

Sales Quantity 6 needles per pack

TEL: 010-64271852 / 186-1048-6053 / QQ：2730015708 QQ：3387992577 QQ：2890633688 QQ：3602655150

上一个：注射器与针头的远程连接

下一个：数字进样针 (Digital Syringes)

Hamilton提供19种不同聚合物基的高效液相色谱柱，包括反相色谱柱、阴离子交换色谱柱、阳离子交换色谱柱和离子排阻色谱柱，可满足全方位HPLC应用分析。

美国Chemplex原装进口的X射线荧光光谱仪样品制备专用耗材：XRF样品杯、XRF样品膜、Mylar麦拉膜、迈拉膜、XRF专用粘接剂、XRF专用熔样机。
